Environment
- AV20476RS
- AV20576RS
- AV20576RSIR
- AV32576RSIR
Camera Preset Configurations:
NOTE: In the webpage, channels from left to right will be 4, 3, 2, 1. Hover over the channel to verify. The camera will keep the last position of each of the channels on a reboot.
The AV Constar ConteraIP Omni LX RS camera supports three(3) predefined camera preset configurations:
180 degrees,270 degrees, and 360 degrees. Also, the camera supports two custom preset configurations.

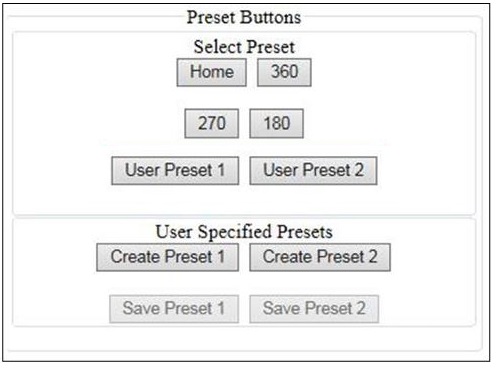

Click the "Presets" Tab on the main menu to control the camera preset configurations via the web interface.
Note: ConteraIP Omni LX RS camera is not used as a traditional high-speed PTZ camera. The motorized
movement of the camera gimbals is meant for setup and configuration only. Movement of the modules more than one time per day will void the warranty.

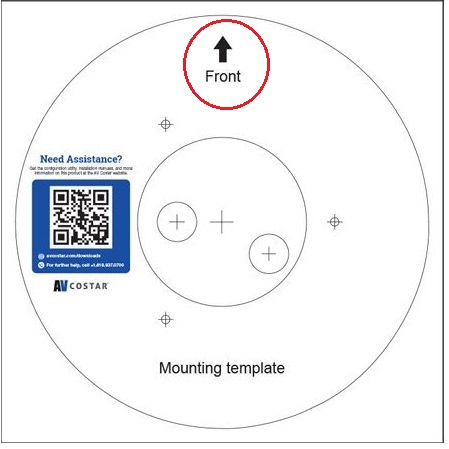

Note: Module CH2 will not pass the FRONT position shown on the mounting plate to avoid the cable routing problem.
Note: Modules will stop moving once they hit the module next to it during pan movement in either direction.
Note: Live video is disabled during pan/tilt adjustment.
- If the 180, 270, or 360 preset configurations are being used, orient the camera such that the arrow denoting the front of the camera is pointing toward the center of the desired field of view.

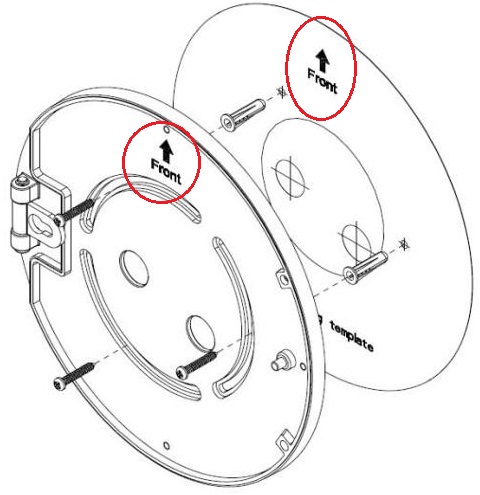

- Attach the mounting plate to the ceiling using the supplied mounting hardware.
-

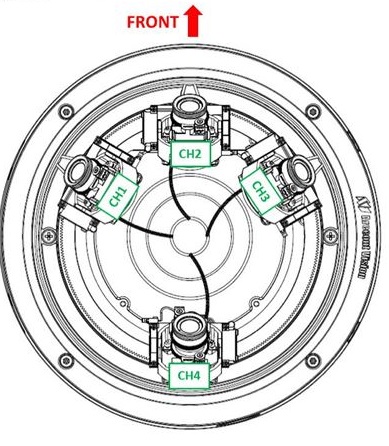

Home position:
Four camera modules will move to the position as in the image below. All four modules zoom out to the widest angle and tilt up to zero degrees.
-

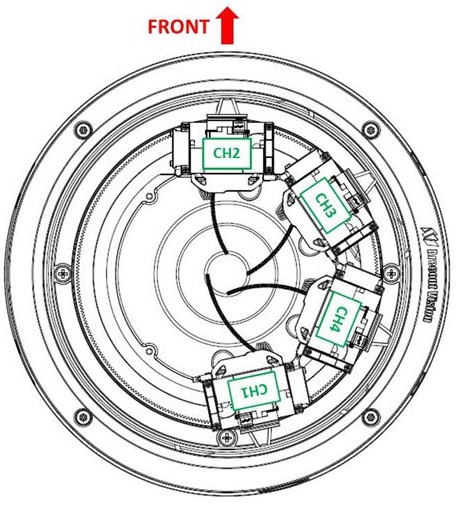

180 Degrees preset configuration
Four camera modules will move to the positions in the image below. CH1/2/3 zoom in to 60 degrees H-FOV, and tilt down to 37 degrees. CH4 zooms out to the widest angle and tilts down to 135 degrees.
-

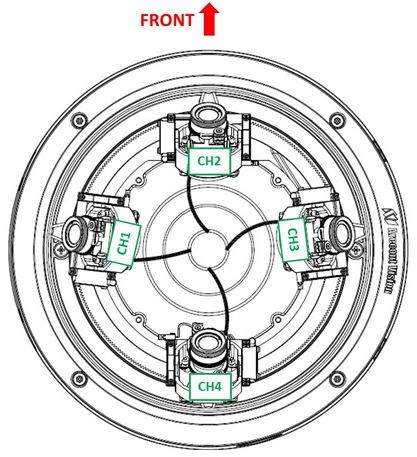

270 degrees preset configuration
Four camera modules will be moved to the positions as in the image below, CH1/2/3 zoom in to 90 degrees H-FOV, and tilt down to 37 degrees. CH4 zoom out to the widest angle and tilt down to 135 degrees.
-

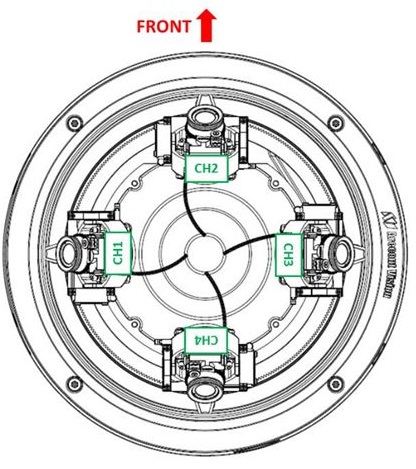

360 degrees preset configuration
Four camera modules will move to the positions in the image below. All four modules zoom into 90-degree H-FOV and tilt down to 37 degrees.
- Please take a look at the installation manual for more information on PTZ programming.
